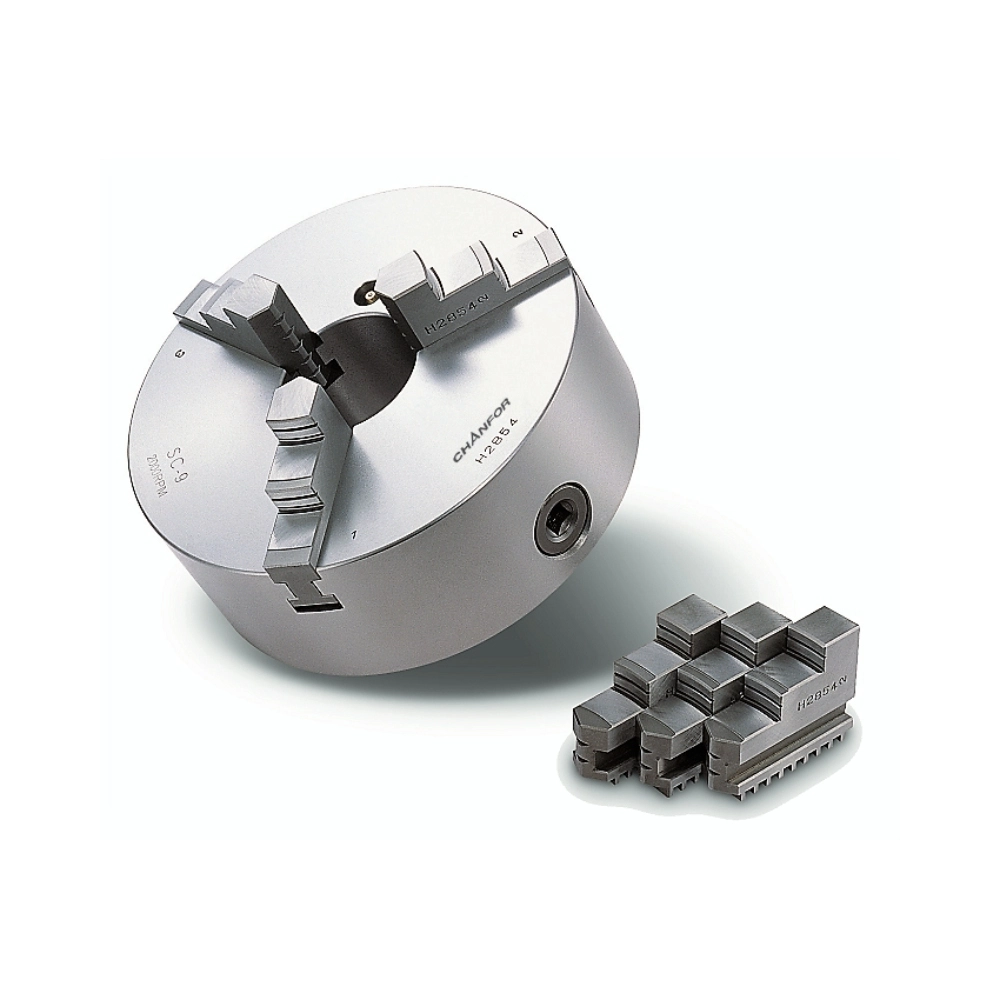

JIS 3-Jaw Powerful Type Scroll Chucks
Hangzhou Chandox Tosun Import & Export company is a joint venture enterprise, it was built in 2005 and located in city of Hangzhou. It is a Chandox sales company in Mainland, We have certificated ISO9001-2015 quality and management system. We have over forty professional employees to serve our customers, we also have four sales offices located in Shenyang, Yantai, Chongqing and Donguan.
Product Details
| MODEL /SPEC. | A | B | C | D | E | F | G | H | J | K | L | Max.Speed r.p.m.(min⁻¹) | Max.Gripping Diameter | Weight (kg) | |
| O.D.Clamping | I.D.Clamping | ||||||||||||||
| SK-04 | 112 | 58 | 80 | 95 | 24 | 4.5 | 3-M8×1.25P | 47 | 19 | 31.5 | 8 | 2500 | φ3-φ100 | φ35-φ93 | 3.45 |
| SK-05 | 132 | 60 | 100 | 115 | 32 | 4.5 | 3-M8×1.25P | 57 | 24 | 36 | 8 | 2500 | φ3-φ123 | φ43-φ122 | 5 |
| SK-06 | 167 | 66 | 130 | 147 | 45 | 5 | 3-M10×1.5P | 68 | 26 | 39 | 10 | 2000 | φ8-φ160 | φ55-φ150 | 8.6 |
| SK-07 | 193 | 76 | 155 | 172 | 58 | 5 | 3-M10×1.5P | 82 | 28 | 43 | 11 | 2000 | φ8-φ180 | φ62-φ170 | 12.8 |
| SK-08 | 203 | 76 | 160 | 176 | 58 | 5 | 3-M10×1.5P | 82 | 28 | 43 | 11 | 2000 | φ8-φ180 | φ62-φ170 | 14.1 |
| SK-09 | 233 | 84 | 190 | 210 | 70 | 5.5 | 3-M12×1.75P | 93 | 32 | 50 | 12 | 2000 | φ11-φ220 | φ70-φ210 | 20.4 |
| SK-10 | 273 | 86 | 230 | 250 | 89 | 5.5 | 3-M12×1.75P | 102 | 35 | 54.5 | 12 | 1800 | φ12-φ260 | φ80-φ250 | 26.7 |
| SK-12 | 310 | 96 | 260 | 285 | 105 | 7 | 3-M12×1.75P | 118 | 40 | 56 | 14 | 1800 | φ15-φ300 | φ90-φ290 | 39.3 |
| SK-14 | 355 | 122 | 300 | 328 | 127 | 7 | 6-M12×1.75P | 139 | 45 | 70.5 | 15 | 1500 | φ25-φ350 | φ110-φ320 | 60.7 |
| SK-16 | 405 | 122 | 345 | 375 | 160 | 8 | 6-M14×2P | 150 | 50 | 75 | 15 | 1500 | φ30-φ400 | φ110-φ380 | 82.3 |
